Multi-lane Vertical Form Fill Seal Machine (Powder)
-
CategoryVFFS
-
ModelEZ-280BF
Features

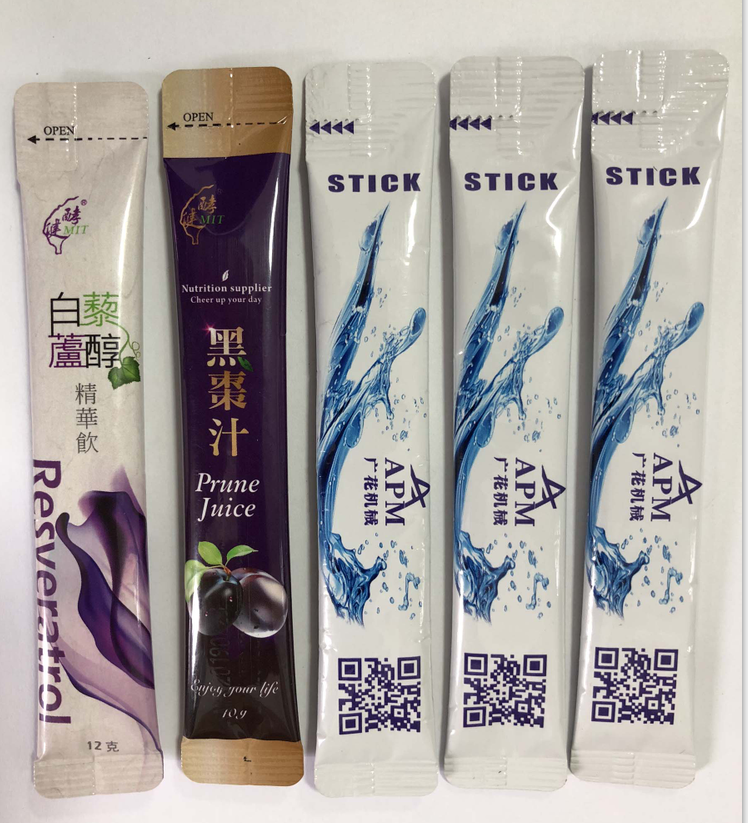

The EZ-280BF vertical powder filling and packaging machine utilizes servo screw, measuring cup, disc feeder, and other methods for measurement. It automatically performs bag-making, filling, sealing, printing, easy-tear notch cutting, and finished product conveying. It is suitable for various food powder and granule products such as pharmaceuticals, probiotics, collagen powder, nutritional supplements, and instant granules.
Equipped with a film detection mechanism, it provides early notification to operators for film replacement, avoiding wastage of film material. The machine utilizes servo film pulling and precise photoelectric detection system to ensure accurate and consistent product dimensions. Optional features include a dust removal system and water cooling system for high dust and high sugar content powder products.
Specification
-
Model
EZ-280BF (Type 280, Type 560, Type 840) -
Packaging material
OPP/CPP, OPP/CE, MST/PE, PET/PE -
Sealing method
Back seal, Round cut, Zig Zag, Die-cut -
Outer Diameter of Film Roll
440~650 mm -
Bag width
20~65 mm -
Bag length
50~150 mm -
1 Lane Packing speed
20~30 bags/min/lane -
Air requests
8 kg/cm2 600 L/min -
Power supply
AC 220 V, 1 ph , 60 HZ, 3.5 KW -
Weight
400 kgs -
Machine Dimension
1,440 (L) * 1,100 (W) * 3,500 (H) mm -
Filling type
Long auger, Short auger, Short with cup
