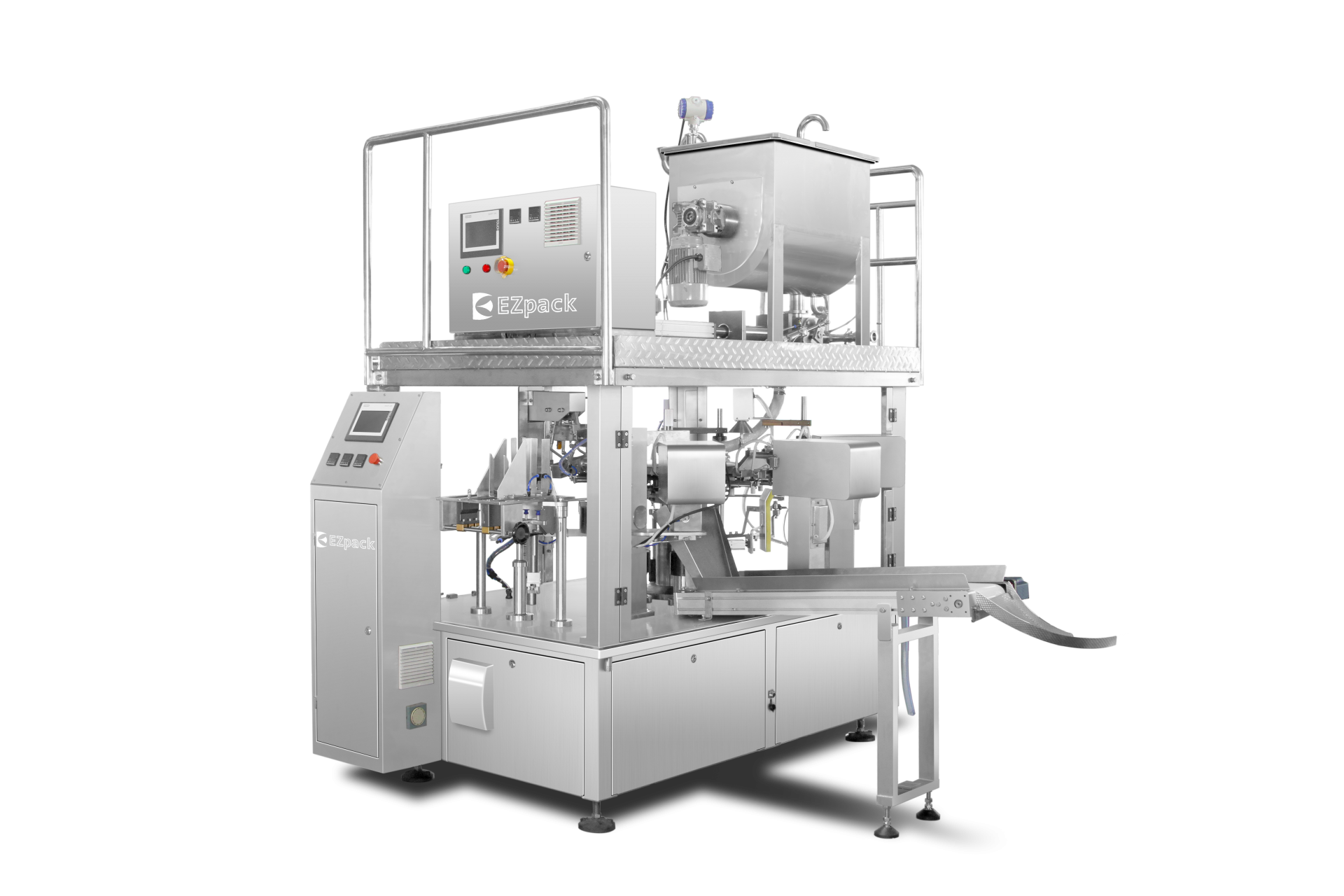

Premade pouch rotary packaging machine

Premade pouch rotary packaging machine

  • Category
    RFFS
  • Model
    EZP-R200
  • The EZP-R200 rotary pouch packaging machine is suitable for medium to large-sized bag filling and packaging. For larger products, the EZP-R300 and EZP-R400 options are available, with the ability to handle bag sizes of up to 400mm in width and 580mm in length.

    It can package various types of flat-bottomed bags, and the bag specifications can be adjusted to accommodate different requirements. The entire machine operates in an automated process, including automatic bag retrieval, filling, sealing, printing, and finished product output. The workstation design ensures high productivity and efficiency. The parts that come into contact with the product are made of SS#316 material. The machine can be configured with a corresponding feeding system to handle liquid, solid-containing, powder, and granule products. It features functions such as no-filling when no bag is detected and no-sealing when no bag is present, reducing material waste and cleaning issues. The machine is easy to maintain.

  • Model

    EZP-R200
  • Applicable bag type

    Stand up bag、Side Seal bag
  • Bag Size

    W:55-200 mm  L: 100-400 mm
  • Filling amount

    10-2000 g
  • Packing speed

    40-55 bags/min-(Zip-lock bag 20-35 bags/min)
  • Air requests

    0.6 m³/min
  • Power supply

    AC 220V, 1 ph , 60 HZ, 3.5 KW
  • Weight

    1500 kgs
  • Machine Dimension

    2500 (L) x 1500 (W) x 1450 (H) mm
  • Filling type

    Solid、Liquid、Powder、Granule
