Side Rotary Capping Machine

Side-warp capping machine

Side-warp capping machine

  • Category
    Filler / Capper
  • Model
  • Mechanical Features:

    1.Servo-controlled cap tightening torque can be adjusted.
    2.Mitsubishi 7-inch full-color HMI (Human-Machine Interface).

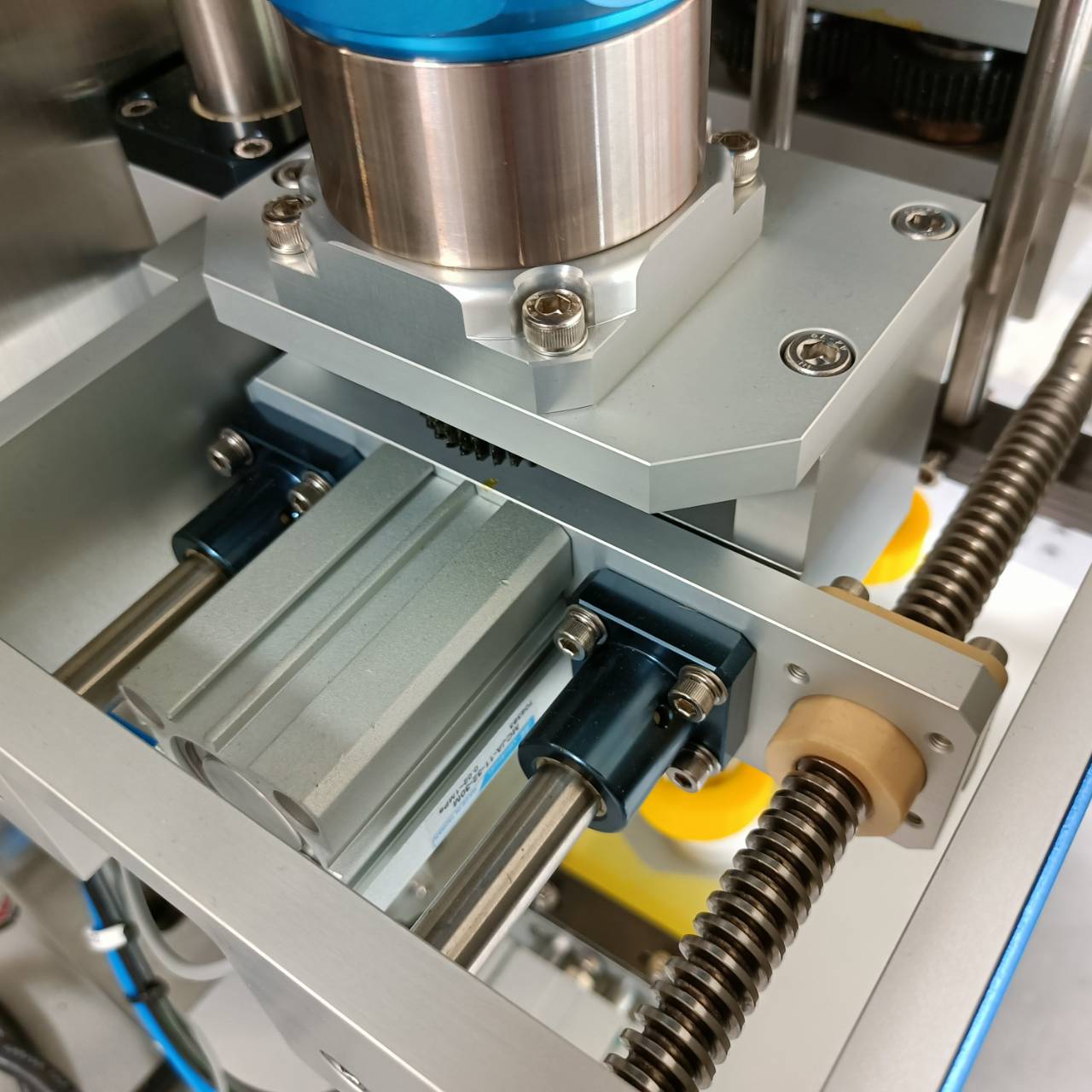

    3.Cap height and width can be adjusted using a rotating handwheel without the need for tools.
    4.Multiple start-up modes available: foot pedal start, HMI button start, or optional automatic sensing start.
    5.The machine body is made of SUS304 stainless steel and aluminum alloy. The mechanism adopts German igus patented dynamic engineering plastic, which has unique self-lubricating properties, eliminating the need for oil maintenance. It is clean and aesthetically pleasing.

    Made in Taiwan

  • Model

  • Bottle cap

    Φ 22-80 mm
  • Bottle body

    Φ 28-90 mm (customized)
  • Bottle height

    60-210 mm
  • Speed

    8-15 bpm (Varies by operator)
  • Air requests

    0.6 m3 / min
  • Power supply

    220V, 1 ph , 60 HZ, 1.5 KW
  • Weight

    80 kgs
  • Machine Dimension

    500 x 475 x 870 mm
