Vacuum Capping Machine-EZpack Co., Ltd.-Bottle Unscrambler、Rinsing Machine、Filling Machine、Counting Machine、Capping Machine and Labeling Machine

Vacuum Capping Machine

Vacuum Capping Machine

  • Category
    Semi-Auto Equipment
  • Model
    EZC-V700

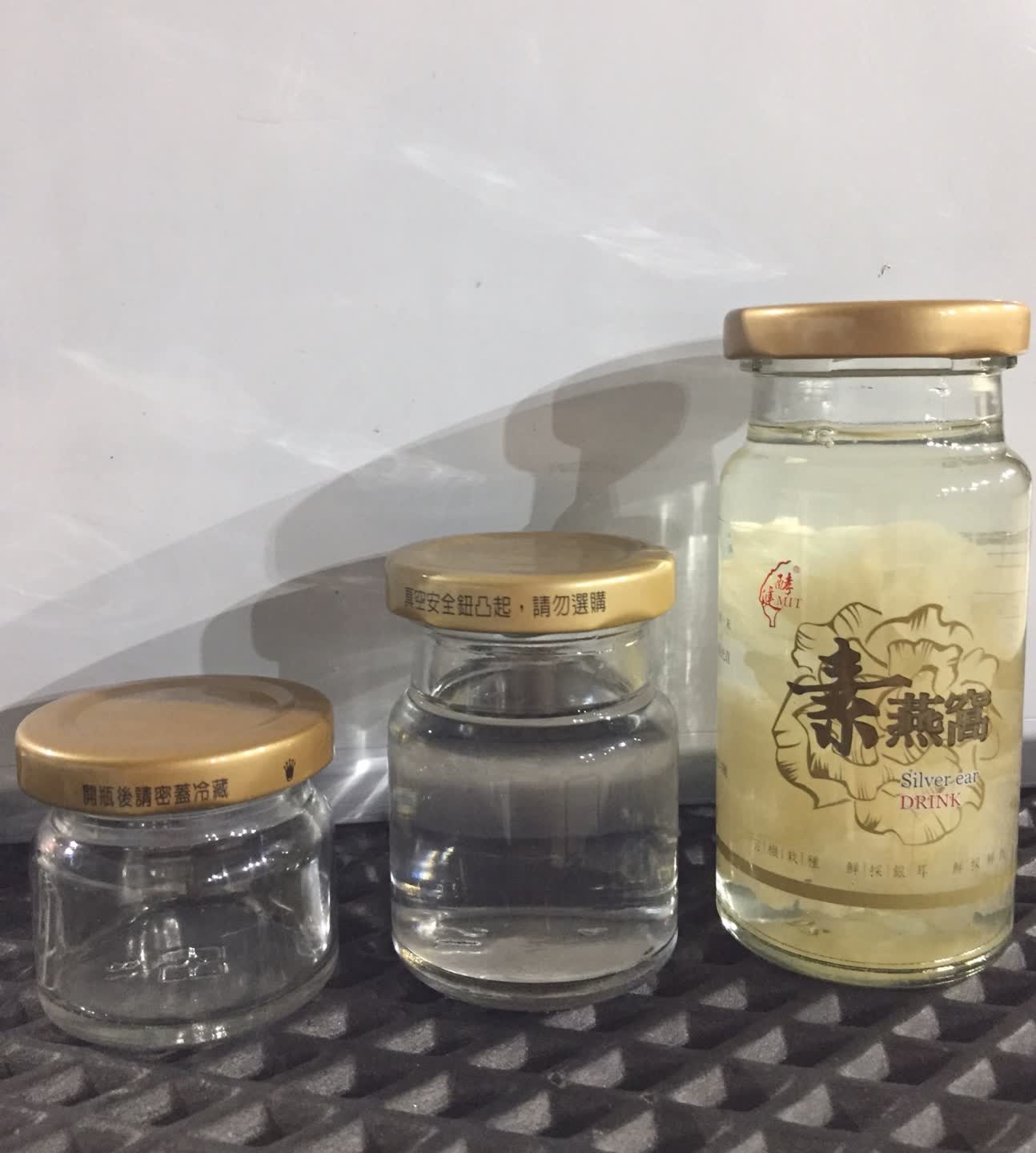

  • EZpack Vacuum Capping Machine is suitable for all glass threaded bottle orifices; Can products with tinned claws, such as sauce, canned fish, canned fruit, peanut butter, canned bird's nest..., etc.The main structure of the whole machine is made of stainless steel and plastic steel. The capping system adopts servo system.

    The torque can be set, controlled and stored on the man-machine interface. According to the different bottle type can be selected with a variety of customized quick disassembling jig, quickly switch the production of different products, improve the flexibility of OEM packaging industry to receive orders, switching products do not need to adjust the machine, man-machine interface integration of multiple groups of formula memory function, vacuum value can be set

  • Model

    EZC-V700
  • Vacuum value

    ≥ -0.08Mpa
  • Bottle diameter

    30-80 mm (Customizable) / 可客製
  • Bottle height

    50-150 mm (Customizable) /可客製
  • Production capacity

    20-25 bpm
  • Air requests

    0.6 m3 / h
  • Power supply

    220V, 1 ph , 60 HZ, 1.5 KW
  • Weight

    150 kgs
  • Machine Dimension

    750 x 700 x 1495 mm
